Before Liquid Rubber Roof Coatings After Liquid Rubber Roof Coatings
The Competition A Roof Coated with Liquid Roof

Butyl Liquid Rubber Cost Summary vs. The Competition

For years the roofing industry had been looking for a way to develop a product based on a one curing process with the ability to “cross link” Butyl polymers at ambient temperatures. In 170, a polymer was manufactured and as a result the first Liquid Butyl was developed. Today, with years of history of success Butyl Liquid has steadily been increasing its popularity around the world for very good reasons.

Butyl Liquid Rubber is significantly similar to the sheet version, but with a few exceptions. It will form a seamless membrane and the unique drying by catalyst provides an airtight membrane as well. The process of how Butyl Liquid Rubber dries or hardens is called a free radical polymerization. Polymerization is a process of reacting monomer molecules together in a chemical reaction to form polymer chains or three-dimensional networks. Our catalyst provides the best properties to ensure a proper cure as well as a very long pot life (working time to use the product). This is another reason it has been marketed over the years as a do-it-yourself product.

Our Butyl Liquid Rubber has excellent weatherability and can withstand high temperatures (up to 250° F). It can also remain flexible at very low temperatures (brittle point is –40° F) and has resistance to acids, alkalis and polar solvents. Below outlines the results of laboratory testing on various chemicals along with their concentration percentages.

It can even withstand total water immersion indefinitely. There are numerous benefits which have distinguished this system as the roof sealant of choice for the past 25 years. Due to its special formulation, it will not chalk. Please refer to our USES PAGE for approved application surfaces. Liquid Rubber may be applied to 95% of roof types and effectively extend the life of an existing roof for a significant number of years.

Compatibility and Performance of Liquid Roof Coatings

Compatibility and performance should be the main criteria in choosing a liquid roof coating. The following comparison lists the pros and cons of various types.

There are many types of roofing materials on the market today. They range from metal decking, shingles, built-up systems, a multitude of single ply membrane systems to single and two component liquid coatings. Each one has a particular cost and performance function that distinguishes it from the others. Some are sophisticated high-tech products commanding a premium price and others are the low-tech but widely used materials. The former requires more skill to install and offers a longer life expectancy than the latter, but regardless of what roofing material was selected there is a high probability that some failures resulting in leaks will occur. The failures could be the result of improper installation, material failure, or a recent roof penetration that was not adequately sealed.

The single ply roofing membranes such as Hypalon and some Thermoplastics were thought to be the “end-all” solution to leaking roofs. However, experience over the past twenty years has proven otherwise. These membrane systems have shown themselves to be only as good as the integrity of their seam seals. Seams are bonded with adhesives or in the case of the thermoplastics, fused with heat. Both of these seam seal methods require the contact surfaces to be clean and of the same dimension to prevent wrinkles. Sloped roofs can tolerate some imperfect seam seals but flat roofs that develop ponding water cannot. It is assumed that the probability of a roof developing leaks will be in direct proportion to the number of joints and seams.

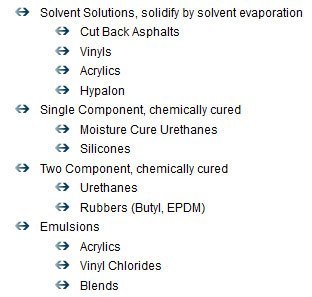

Liquid Elastomeric coatings were developed to repair leaks and extend the service life of existing roofs. These products will be one of four generic types for ambient cure:

Roof Coatings Bullet Points

Nearly all of the liquid coatings can be used on sloped roofs as long as they are compatible with the substrate. Flat roofs have an additional requirement – the coating must be able to withstand ponding water. Figure 1 shows the relative water vapor transmission of several polymer types.

relative water figure
Pricing and Ordering
Characteristics of the Competition
Asphalt Cutback Low cost Poor durablity, brittle when cold
Solution Vinyl Tough, good durability and water resistance Low solid (requires multiple coat application) poor adhesion to many substrates
Solution Acrylics Weatherablity Poor weatherability
Hypalon Solution Ease of application, fire retardant Low solids, poor weather ability, poor water resistance when high plasticized
Moisture Cure Urethane East to use, fast cure Sensitive to high humidity, multiple coats needed
Silicon Resin Weatherability Sensitive to acid rain, not good for ponding water, high cost
Urethane (two component) Good weatherability, flexibility and adhesion, fast cure Short pot life, high cost marginal
Butyl Rubber (two component) Wter resistance and flexibility Fair weatherability
Butyl Liquid Rubber (one component) All the same, except waterproofs within 3-4 hours, also contains mildewcide The curing process stops at temperatures below 50° Fahrenheit
Latex Emulsions Low cost, fast cure, good durablity. Poor water resistance
